1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

Place of Origin : Beijing, China

Brand Name : TCHD

Model Number : Mini MVR

Packaging Details : Carton box

Supply Ability : 20 Piece/Pieces per Month

Price : $850.00 - $950.00/pieces

Power Source : Electric

Warranty : 1 Year

After-sale Service : Online technical support

Material : Metal

Shelf Life : 1years

Quality Certification : CE

Instrument classification : Class I

Safety standard : GB/T18830-2009

Product name : 1080P USB/HDD storage recording devices in hospitals

Application : Endoscope, arthroscopy, surgical camera, C-Arms, ultrasound etc

Resolution : Up to 1920 x 1080 @ 60fps

Storage : Internal removable HDD,external USB HDD, USB Flash, SD Card or network

Input interface : HDMI SDI

Feature : Record and Streaming

Encoded mode : High quality HD video in H.264 or MPEG format

Type : Medical video recorder

Contact Now

1080P USB/HDD storage mini portable medical video recorder

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

Product Advantages

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

Introduction

Introduction

Portable Mini Medical Video Recorder, a medical grade dual interface full HD video recorder. It combines superior image and video quality, extensive easy control various removable storage media and a series of innovative features. It can record high-definition crisp1080p video from endoscope, arthroscopy, surgical camera, C-Arms, ultrasound etc. Can saves extremely clear still images and videos to an internal removable HDD external USB HDD, USB Flash, SD Card or network.

Meanwhile portable recorder supports real time streaming by connecting to the hospital network. It enables the live transmission of procedures to other practitioners or students outside of the operating theater for training or monitoring purposes on PC or iPad/iPhone.

The recorder can be used in almost unlimited number of situations the major application is in medical imaging. No long limited to paper or film-based images and no longer any need for cumbersome DVD disks. The recorder allows you to easily record digital video and images directly to a flash drive or hard drive. You can archive and share your recordings on a secure hospital networks enhance them with third-party editing programs etc.

Features

  • Easily record crisp 1080p video and images
  • High quality HD video in H.264 or MPEG format
  • 5hrs standalone video recording
  • Still image photo and DICOM support
  • Optimized recording for medical image process
  • The video formats support most of video edit software
  • Instant replay to preview monitor or LCD
  • Simple to use, no special training required
  • Support Full HD video up to 1080p@60fps
  • Both HD and 3G SDI video input supported

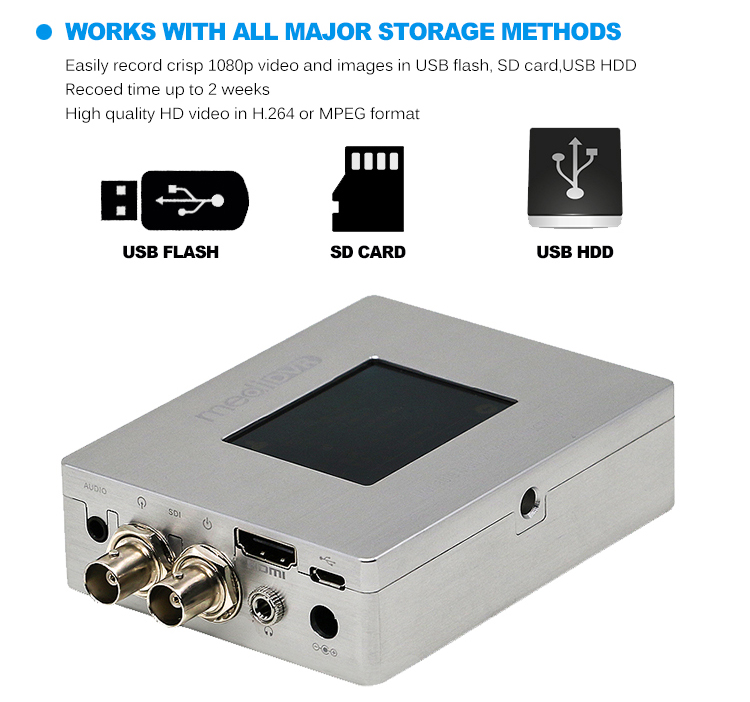

  • Universal storage works with all major USB Flash, SD Card,USB HDD

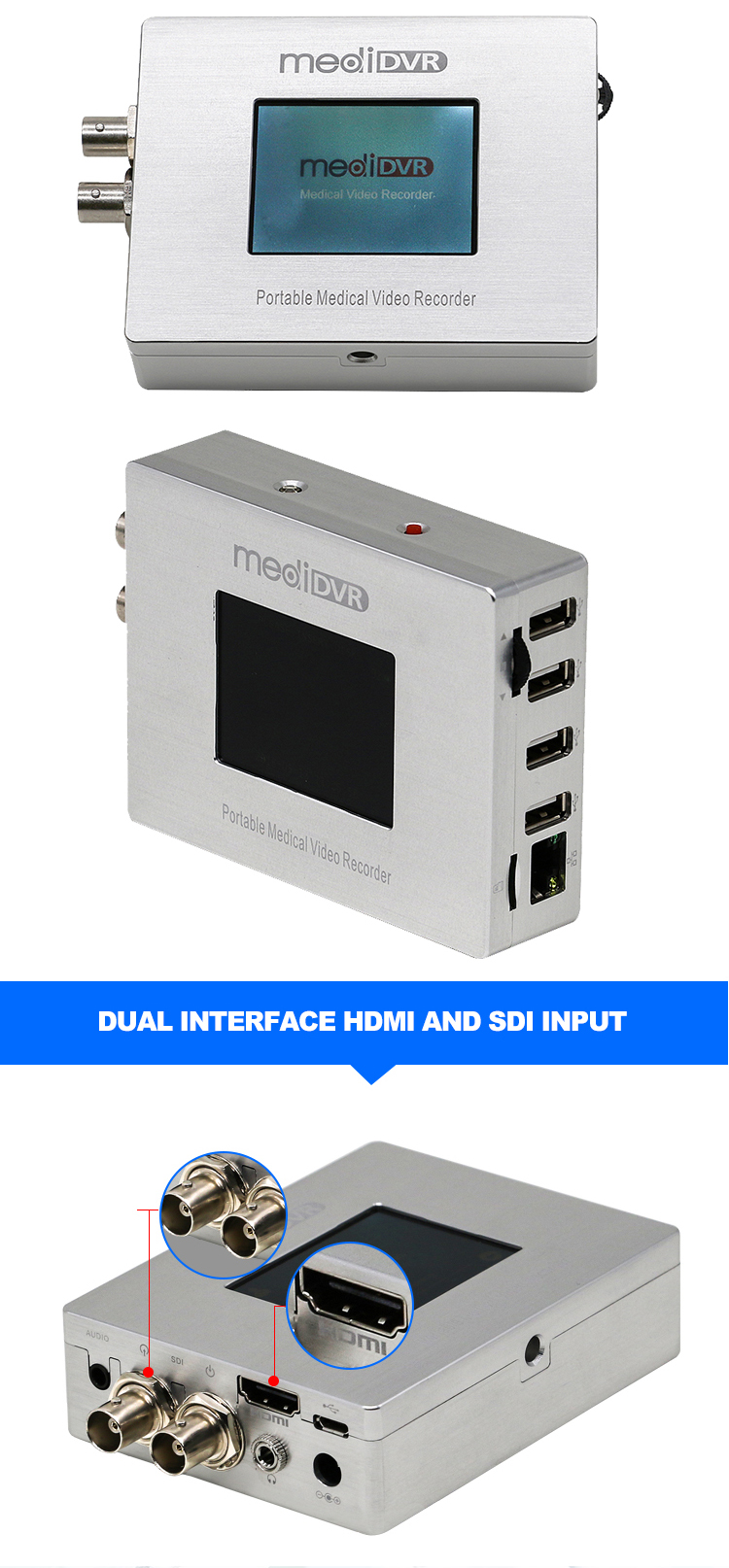

  • HDMI and SDI input
  • mp4, mov video format all supported
  • SDI loop output
  • 3 level gain adjustable Omni-directional microphone
  • Still Image Photo
  • Patient information input and management
  • Shortcuts to quickly switch video source and storage media
  • Network supported for live video streaming on any devices
  • Small size and low cost and high quality
  • Upgradable firmware

 Power

 Voltage

 AC 110-240V 1A 50/60Hz 12VDC 2A, Medical Grade

 Video and Photo

 Video Encoder

 H.264/HP, MPEG-4/SP

 Resolution

 Up to 1920×1080@60fps

 Bit Rate

 Max. 12Mbits/s, 50/60/fps

 Frame Rate

 24/25/30fps, 50/60fps

 Codec

 H.264/MPEG4,  .mp4/.mov file format

 Rate Control

 CBR/VBR


 Jpeg, DICOM, BMP

 Streaming

 RTSP

 Audio

 Sampling

 16Khz 16bits

 Codec

 AAC Stereo

 Channels

 2 with AGC 2.2VDC Bias, 2.2Kohm, <0.7VRMS -36db. MIC gain adj.

 Interface

 HD/3G SDI In.

 1 x BNC, 75ohm, 800mVpp

 DVI Input

 via HDMI/DVI adapter or cable

 HDMI Input

 1 x TYPE A, Receptacle

 Preview

 LCD

 SDI Loop Output

 Loop out HD/3G SDI, 75ohm, 800mVpp

 Audio In

 2CH, 2 x 3.5mm Jack, 20Kohm higher

 Audio Out

 2CH, 2 x 3.5mm Jack

 Network

 RJ45 10/100 Ethernet

 Network Stack

 RTSP

 USB

 4 x USB 2.0

 SD

 TF/MicroSD

 Visible

 Color LED

 Alert

 Buzz

 LCD

 2.4″ TFT for video preview and setting

 Button

 Top 2 and side 3 direction

 Storage

 External

 USB Flash Drive, USB HDD, SD (Sold Seperately )

 Disk Format

 FAT32, up to 2T

 Physical

 Size

 102 x 82 x 39mm (4″ x 3.2x1.2) Aluminum case

 Weight

 320g (11oz)

 Operating

 0°C to 45°C(32°F to 113°F)

 Storage

 -20°C to 60°C(-4°F to 140°F)

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

Packaging & Shipping

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage

Company Information

1080P Mini Electric Portable Medical Video Recorder USB/HDD Storage
