PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Place of Origin : Beijing, China

Brand Name : TCHD

Model Number : TC542N4SDI

Packaging Details : Carton box

Supply Ability : 500 Piece/Pieces per Month

Price : $485.00 - $590.00/pieces

SDK : SDK support

Compression mode : Software compression

Operation System Support : Windows,Linux

Nature : 1080P60 live streaming

Input : SDIx4

Output : HTTP/RTMP/RTSP

Video encoding : H.264

Resolution : 1920x1080P60

Type : PCIe 4U

Application : Live streaming, webcasting, video conference, game capture

Port : Beijing

Contact Now

PCIe 4U SDI H.264 PCIe 4U high quality video capture card

PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System SupportPCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support



Introduction

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support



TC542N4SDI with 4 SDI inputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

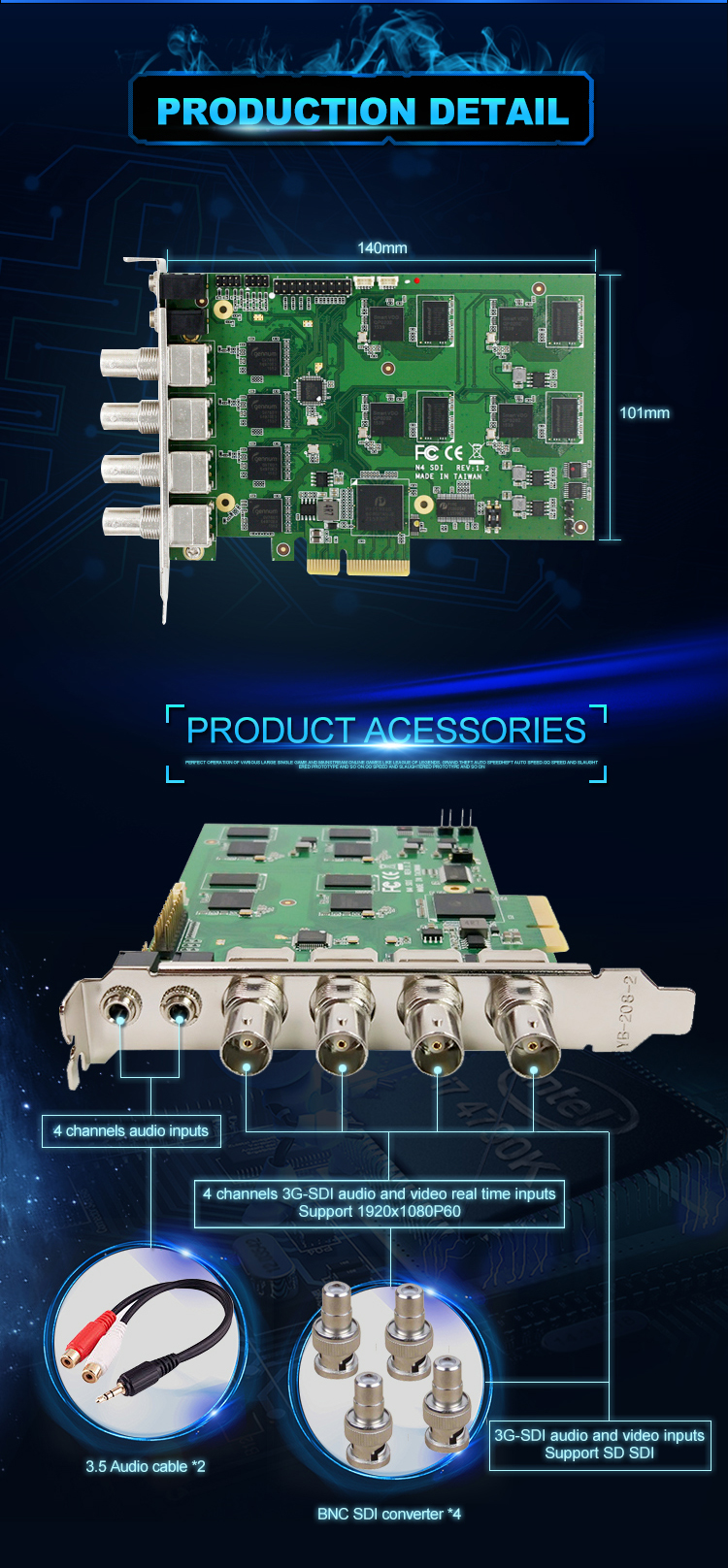

TC542N4-SDI Product Series Hardware Specification

 Model

 TC-542N4-SDI

 Feature

 Simultaneously 4ch 3G-SDI capture with H.264 Main  Profile encode

 Max. Input Resolution

 1920×1080p@60/50fps

 Recording Mode

 Software Compression, Real-Time Mode

 Dimension

 140.51 x 101.01 (mm)

 Interface

 PCIe x4 (Gen2)

 Video Input

4 x SDI

 Video RAW Data Format

 YV12, NV12, YUY2, RGB24, RGB32

 Video RAW Data Resolution

 3G-SDI

 1920×1080p@60/50fps



 HD-SDI

 1920×1080p@30/25/24fps

 1920×1080i@60/50fps

 1280×720p@60/50fps



 SD-SDI

 720×480i@60fps

 720×576i@50fps

 Recording Video Format

 H.264 (Software Compression)

 Recording Video Resolution

 3G-SDI

 1920×1080p@60/50fps



 HD-SDI

 1920×1080p@30/25/24fps

 1920×1080i@60/50fps

 1280×720p@60/50fps



 SD-SDI

 720×480i@60fps

 720×576i@50fps

 Audio Input

 4 x SDI Embedded Audio

 2 x 3.5mm Audio

 Audio Format

 Stereo / 16-bit / 48000Hz

 I/O

 16

 WatchDog

 Yes

 Multiple Cards

 ∞

 SDK

 VC++ /C# .NET / VB/ V4L2

System Requirement

 OS Support

 Windows XP / Vista

 Windows 7 / Windows 8 / Windows 8.1/ Windows 10

 Linux 2.6.14 or Higher

 ( 32-bit and 64-bit )

Main Features

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Software Support

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Applications

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

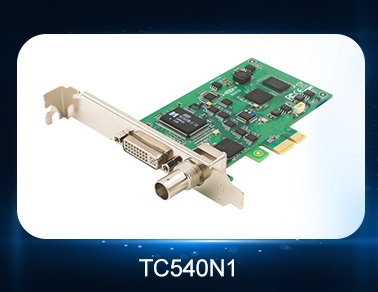

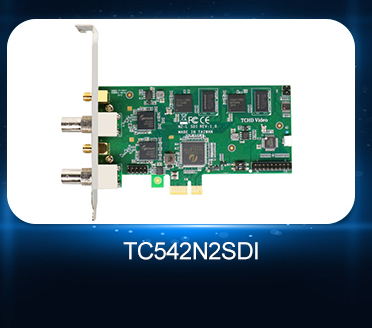

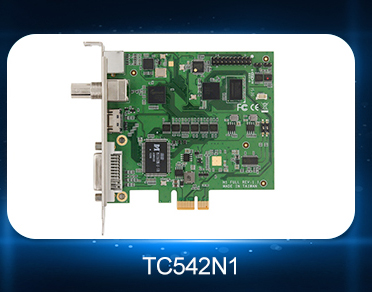

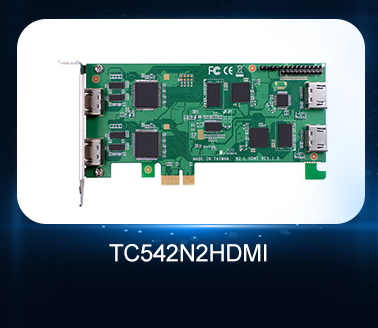

Related Products

PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System SupportPCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System SupportPCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System SupportPCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System SupportPCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Packaging & Shipping

PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Advantages

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support

Company Information

 PCIe 4U H.264 SDI Video Capture Card 1920×1080p Linux System Support
