PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution

Name: PCIe 2 Channel HD SDI Video Capture Card for PC H264 Encoding 1920x1080P60 Resolution
Brand: TCHD
Price: 367.00 USD

Buy cheap PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution product

Place of Origin : Beijing, China

Brand Name : TCHD

Model Number : TC542N2SDI

SDK : SDK support

Compression mode : Software compression

System support : Windows,Linux

Nature : 1080P60 live streaming

Input : SDIx2

Output : HTTP/RTMP/RTSP

Video encoding : H.264

Resolution : 1920x1080P60

Type : PCIe 4U

Application : Live streaming,video conference, game capture

Packaging Details : Carton box

Port : Beijing

Supply Ability : 500 Piece/Pieces per Month

Price : $367.00 - $441.00/pieces

Contact Now

Factory sales PCIe 2 channel hd SDI video capture card for PC

Introduction

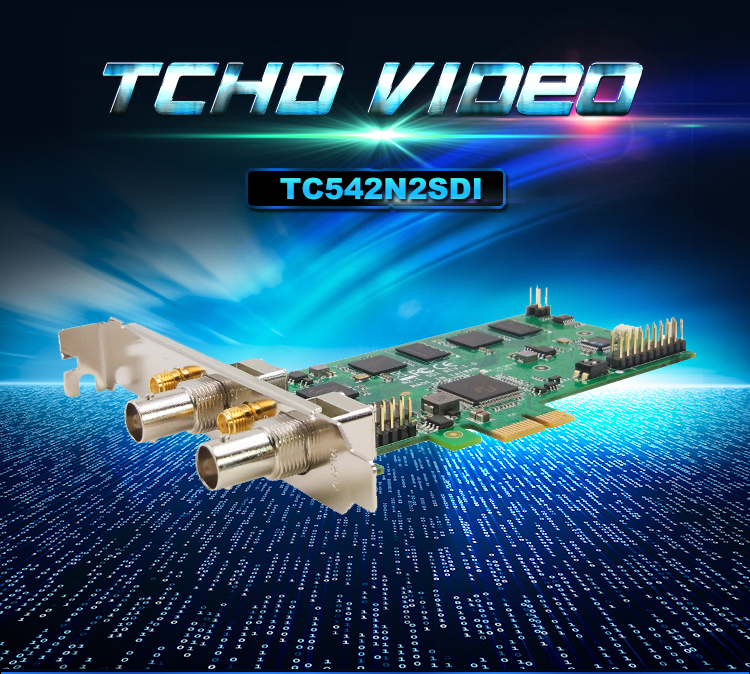

PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution

TC542N2SDI with 2SDI inputs and 2SDI loop through outputs, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

Max.FPS	1920x1080p@60/50fps in 1920x1080p@60/50fps out
Recording Mode	Sofware Compression,Real-Time Mode

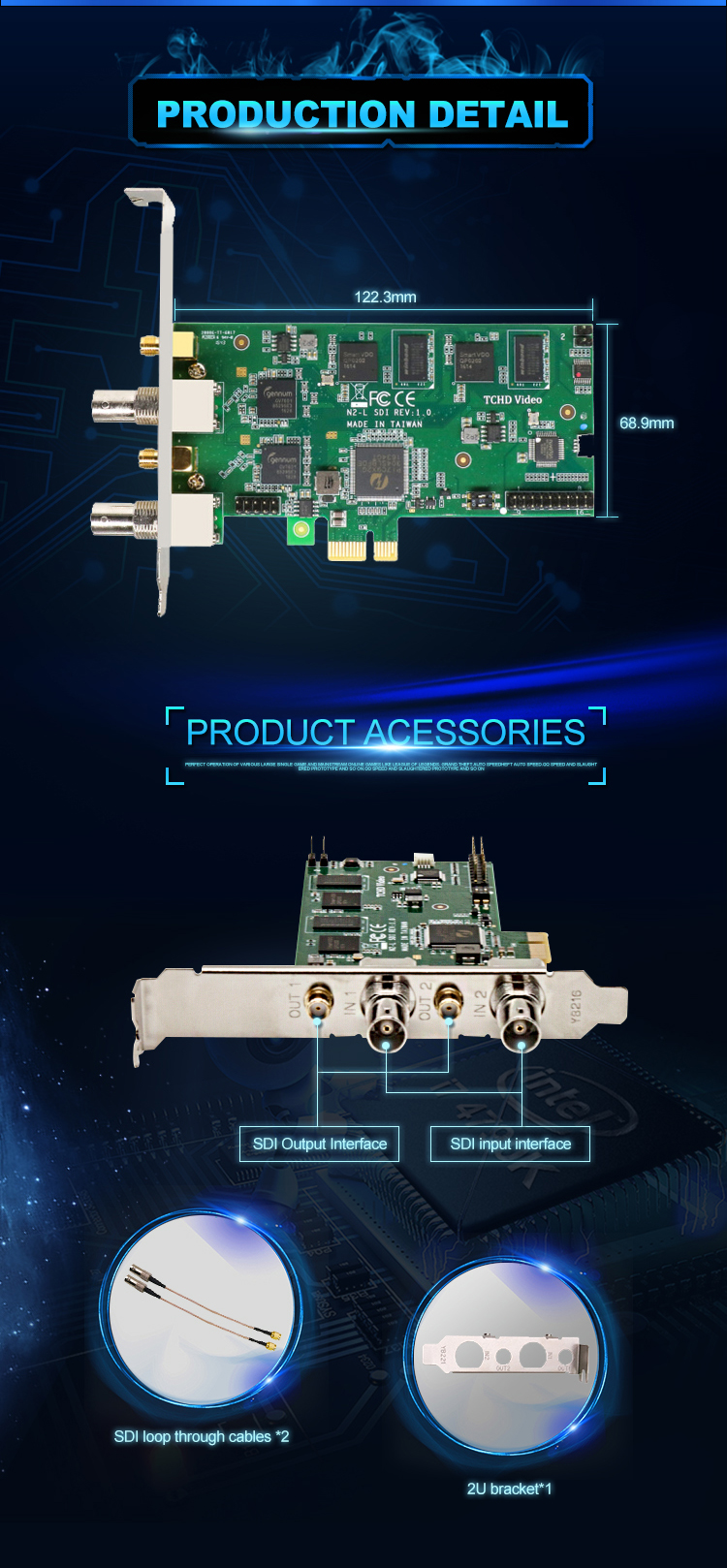

Dimension	122.3x68.9(mm) PCIE Low profile
Interface	PClex1(Gen2)
Video Input	2xSDl
Video Output	2xSDl(Loop-through)
Display Video Format	YV12,NV12,YUY2,RGB24,RGB32
Display Video Resolution	3G-SDI 1920x1080p@60/50fps HD-SDI 1920x1080p@30/25124fps 1920x1080i@60/50fps 1280x720p@60/50fps SD-SDI 720x480i@60fps 720x576i@50fps
Recording Video Format	H.264 (Software Compression)
Recording Video Resolution	3G-SDI 1920x1080p@60/50fps HD-SDI 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps SD-SDI 720x480i@60fps 720x576i@50fps
Audio Input	2xSDI Embedded audio
Audio Format	2xSDl Embedded audio (Loop-through)
I/O	16
Watch Dog	Yes
Multiple Cards	∞
SDK	VC++ / C# /.NET / VB / V4L2
System Requirements
OS Support	Windows XP / Vista / Windows 7 Windows 8 /Windows 8.1/ Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Main Features

PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution

Software Support

PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution

Applications

PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution

PCIe 2 Channel HD SDI Video Capture Card for PC H.264 Encoding 1920x1080P60 Resolution Images
