Introduction

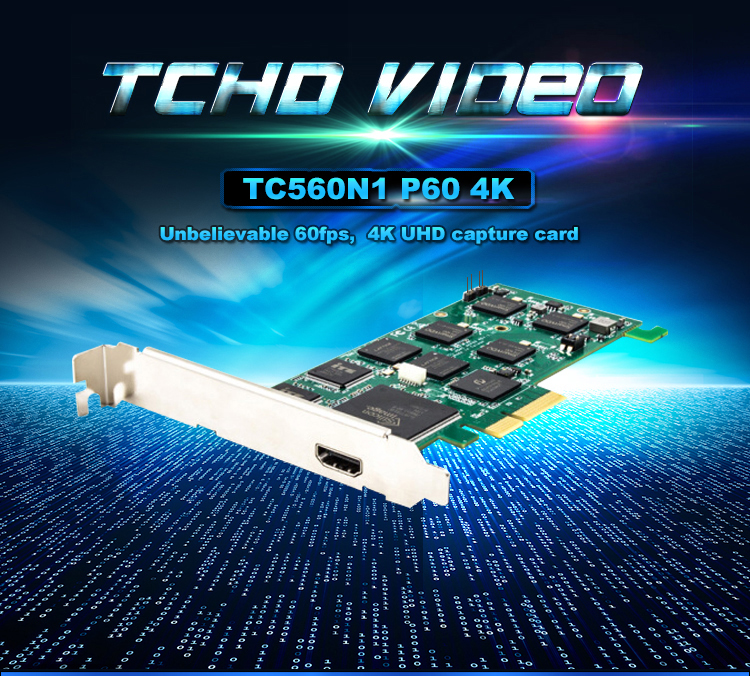

TC560N1 P60 with 1xHDMI input, support from 4K60P to 720x576i50 full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.
Model | TC-56ON1 4K HDMI |
Max.FPS | 4096x2160p@60/50fps in 4096x2160p@60/50fps out |
Recording Mode | Software Compression,Real-Time Mode |

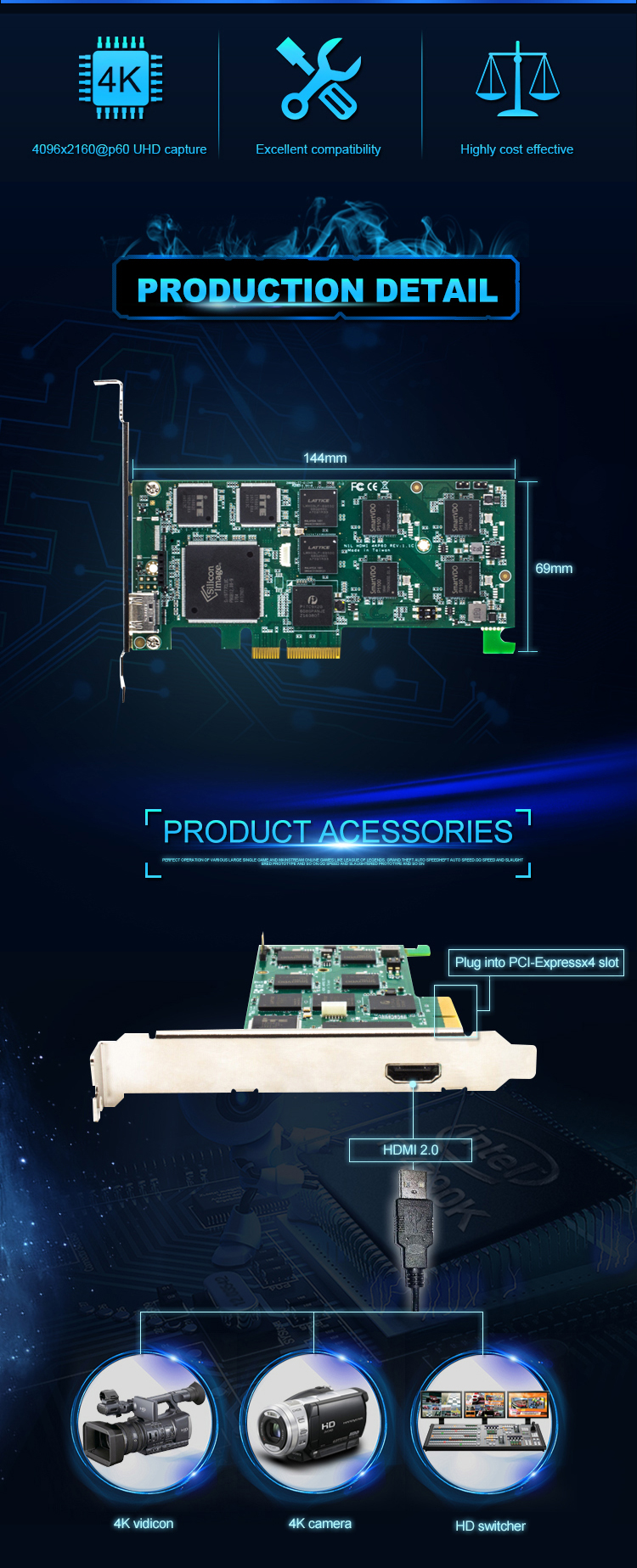

Dimension | 144.75x68.9(mm) |
Interface | PCIX4 |
video Input | 1XHDMI 2.0 |
Display Video Format | YV12,NV12,YUY2,RGB24,RGB32 |
video RAW Data Resolution | HDMI 2.0 4096x2160@60/50/30/25/24fps 3840x2160@60/50/30/25/24fps 2560x1600@120/85/75/60fps 2560x1440p@60fps 1920x1440@120fps 1856x1392@120fps 2048x1152@60fps 1920x1200p@60fps 1920x1080p@144/120/60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60150fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@6Ofps 640x480p@60fps 720x480p@60fps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
Recording Video Format | H.264 (Software Compression) |
Recording Video Resolution | HDMI 2.0 4096x2160@60/50/30/25/24fps 3840x2160@60/50/30/25/24fps 2560x1600@120/85/75/60fps 2560x1440p@60fps 1920x1440@120fps 1856x1392@120fps 2048xl152@60fps 1920x1200p@60fps 1920x1080p@144/120/60/50fps 1920x1080p@30/25/24fps 1920x1080i@60/50fps 1280x720p@60/50fps 1280x1024p@60fps 1280x960p@60fps 1024x768p@60fps 800x600p@60fps 640x480p@60fps 720x480p@6Ofps 720x576p@50fps 720x480i@60fps 720x576i@50fps |
Audio Input | lxHDMI Embedded audio |
Audio Format | Stereo/16-bit/32000-48000Hz |
WatchDog | Yes |
Multiple Cards | ∞ |

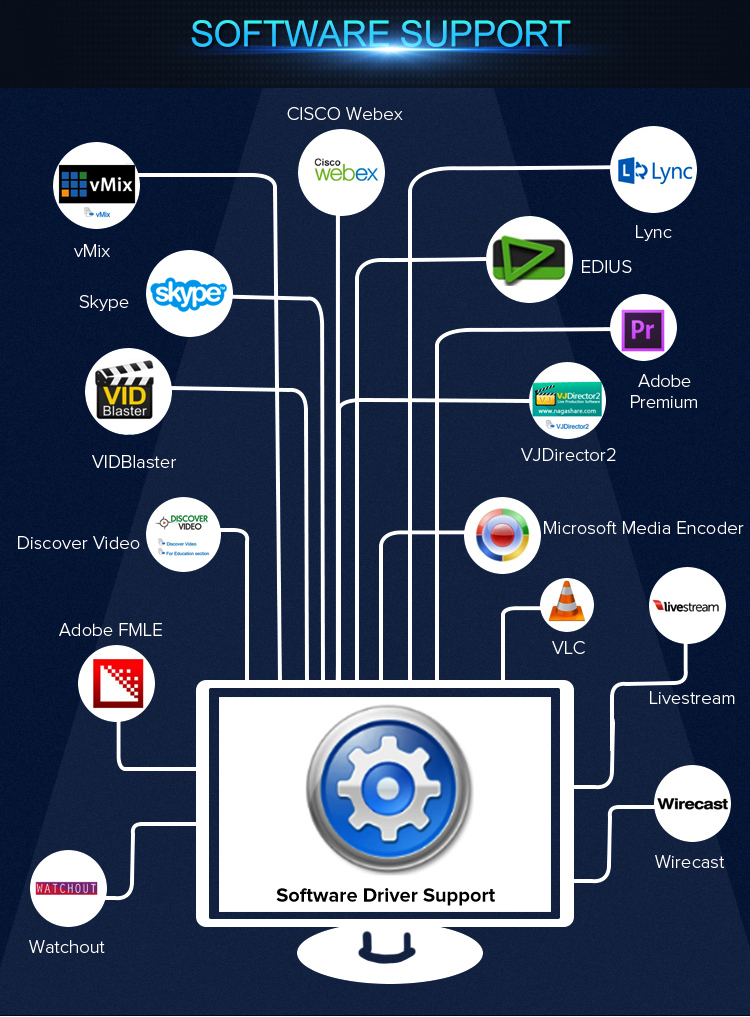

SDK | VC++/C#/.NET/VB/V4L2 |
System Requirement |
OS Support | Windows XP/ Vista/ Windows 7 Windows 8/ Windows 8.1/ Windows 10 Linux 2.6.14 or Higher (32-bit and 64-bit) |
