High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio

Name: High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio
Brand: TCHD
Price: 310.00 USD

Buy cheap High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio product

Brand Name : TCHD

Model Number : SDI2Multi

Place of Origin : Beijing, China

Packaging Details : Carton box

Supply Ability : 300 Piece/Pieces per Month

Price : $310.00 - $360.00/pieces

Input : SDI

Output : HDMI, VGA, DVI, S-video, CVBS, YPbPr, composite,SDI

Resolution : 1920x1080P60

Audio : independent audio

Feature : plug and play, up/down scaling

Application : video format conversion, video display, TV wall, image display

DC In : 7.5V-15V

Port : Beijing

Contact Now

Wholesale SDI to DVI Multi region of interest (RIO)video to ip converter up/down scaling

Introduction

High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio

TCHD SDI to Multi video converter is a high-quality, high-performance video signal conversion product. It Supports 1 channel SDI input and 1 channel SDI loop out 3BNC(YPbPr, CVBS) and 1 DVI(HDMI/DVI /VGA) outputs.Unlike the traditional converter products in current market, our SDI to multi Converter which built in a professional image conversion processing chip, and with HDMI / VGA / CVBS video image enhancement, noise reduction,support the user-adjustable to set the saturation / brightness / contrast , and through automatic scaling and frame rate conversion, a SDI input signal can be converted to a standard output format video signal , compatible with all common HDMI, VGA and CVBS signals.

Description	Convert from 3G/HD/SD-SDI input to DVI-D/VGA or Component/S- Video/Composite video output
Feature	Auto source format detection(3G/HD/SD) Buit-in up/down conversion engine with anti-alasing Simultaneous 1xDVI-VComponent/S-Video/Composite and 1xSDI output Re-clock function (for SDl output) Hot-keys for video mode and device configrations Mini-USB port for configurations and software upgrade
Input	SDI x 1
Output	Up/Down Converted DVHx1(convertible to VGA) Up/Down Converted BNCx3 for Component/S-Video/Composite 3.5mm Phone jack for analog audio Loop-Through SDIx1
Supported Video Input Format	SDI 1080p60/50,1080i60/50,1080p30/25/24,720p60/50 1080p59.94,1080i59.94,720p59.94,1080p29.97,1080p23.98 525i,625i



Supported Video Output Format	Composite/SVideo NTSC/PAL Component 480i,576i,480p,576p 720p,1080i,1080p DVI/VGA 800x600@60Hz,1024x768@60Hz,1280x1024@60Hz 1366x768@60Hz,1400x1050@60Hz,1600x1200@60HZ
Audio Input Format	Up to 8 channels, 24bit, 48KHz
Audio output Format	HDMI/SDl:Up to 8 channels,24bit,48KHz 3.5mm Phone Jack:Stereo,16bit,48KHz
Plug & Play	YES
DC In	7.5V-15V

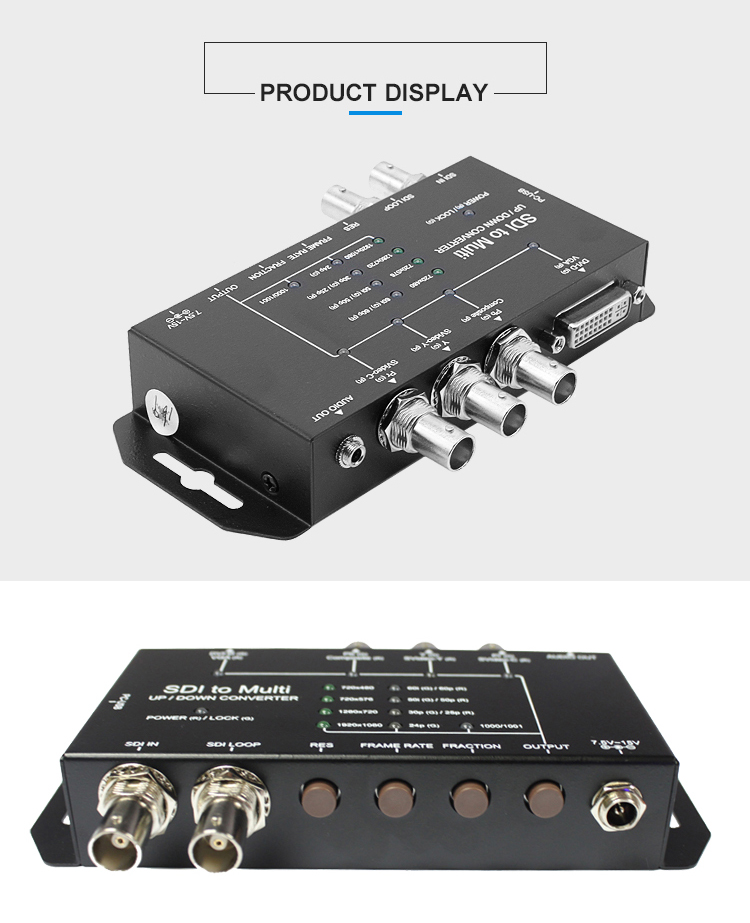

Product Display

High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio

High Performance SDI To DVI Multi RIO Video To IP Converter With Independent Audio Images
