HDM SDI Analog To Digital Converter 1920x1080P60 Resolution Easy Installation

Name: HDM SDI Analog To Digital Converter 1920x1080P60 Resolution Easy Installation
Brand: TCHD
Price: 360.00 USD

Buy cheap HDM SDI Analog To Digital Converter 1920x1080P60 Resolution Easy Installation product

Brand Name : TCHD

Model Number : Analog2digital

Place of Origin : Beijing, China

Packaging Details : Carton box

Supply Ability : 300 Piece/Pieces per Month

Price : $360.00 - $400.00/pieces

Input : DVI VGA S-video, CVBS, YPbPr, Component, composite

Output : HDM SDI

Resolution : 1920x1080P60

Audio : independent audio

Feature : plug and play, up/down scaling

Application : video format conversion, video display, TV wall, image display

DC In : 7.5V-15V

Port : Beijing

Contact Now

Easy to install analog singal to digital signal converter with up/down scaling

HDM SDI Analog To Digital Converter 1920x1080P60 Resolution Easy Installation

Introduction

HDM SDI Analog To Digital Converter 1920x1080P60 Resolution Easy Installation

TCHD Multi to SDI HDMI video converter is a high-quality, high-performance video signal conversion product. It Supports Support 3 BNC(YPbPr, S-Video, CVBS) + 1 DVI(HDMI/DVI /VGA) inputs and 1channel HDMI + 2 channels SDI outputs.Unlike the traditional converter products in current market, our Multi to SDI HDMI Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI or HDMI signal, compatible with all common analog and digital signal.

Multi to SDI/HDMI Up/Down Converter (MULTI to SDI/HDMI)
Description	Convert from DVI-D/VGA or Component/S-Video/Composite to 3G/HD/SD-SDI and HDMI output
Feature	Built in up/down conversion engine Video enhancement with anti-aliasing and 3D deinterlacer Simultaneous 2 x SDI plus 1 x HDMI output Hot-keys for video mode and device configurations Mini-USB portfor configurations and software upgrade Region of interest Test pattern Test label

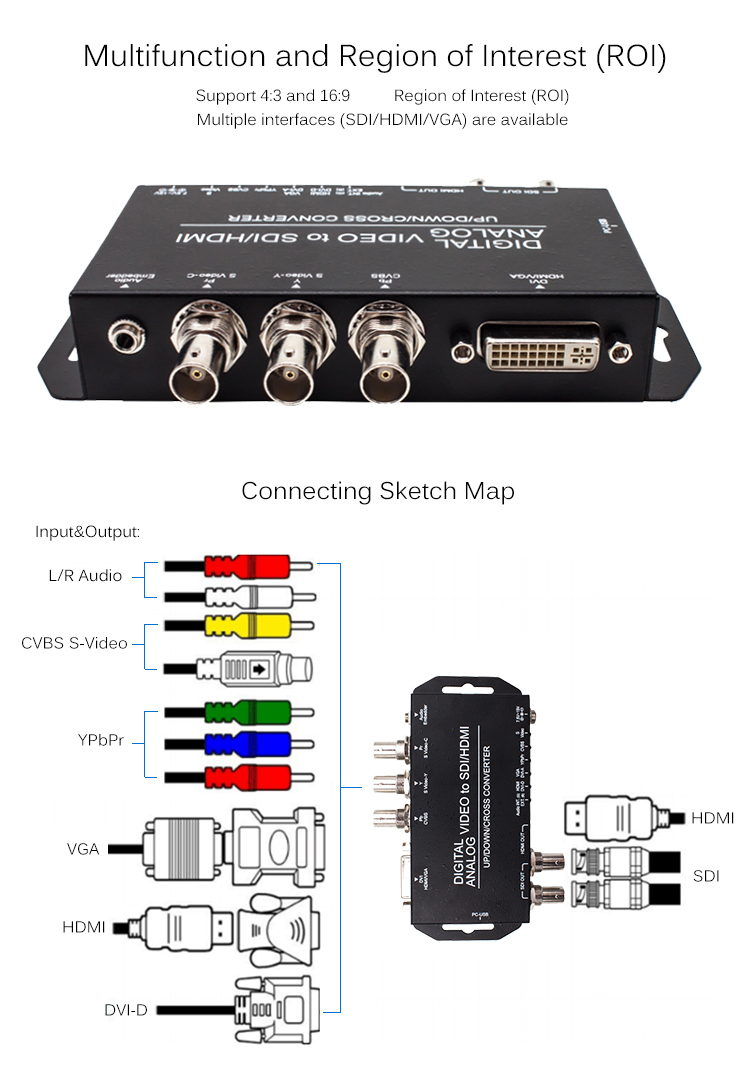

Input	DVI-I x 1(Support DVI-D and VGA) BNC x 3 for Component/S-video/Composite 3.5mm Phone jack for analog audio
Output	SDIX2 HDMIX1
Supported Video Input Format	Composite/SVideo NTSC/PAL Component 480i,576i,480p,576p 720p,1080i,1080p DVI/VGA 800X600@60HZ,1024X768@60HZ,1280X1024@60HZ 1366x768@60Hz,1400x1050@60Hz,1600x1200@60Hz
Supported Video Output Format	SDI 1080p60/50,1080i60/50,1080p30/25/24,720p60/50 1080p59.94,1080159.94,720p59.94,1080p29.97,1080p23.98 525i,625i
Audio Input Format	DVI-D(Converted to HDMI): Up to 8 channels,24bit,192KHz 3.5mm Phone Jack: Stereo.24bit,48KHZ
Audio Output Format	HDMI/SDI: Up to 8 channels,24bit,48KHz
Plug & Play	YES
DC In	7.5V-15V

Product Display
