4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Place of Origin : Beijing, China

Brand Name : TCHD

Model Number : TC560N1 P30

Packaging Details : Carton box

Supply Ability : 500 Piece/Pieces per Month

Price : $300.00 - $350.00/pieces

SDK : SDK support

Compression mode : Software compression

Operation System Support : Windows,Linux

Nature : 4K UHD live streaming

Input : HDMI

Output : HTTP/RTMP/RTSP

Video encoding : H.264

Resolution : 4096x2160P30

Type : PCIe 4U

Application : Live streaming, webcasting, video conference, game capture

Port : Beijing

Contact Now

High quality 4K UHD live streaming live streaming game capture pci tv capture card

4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Introduction

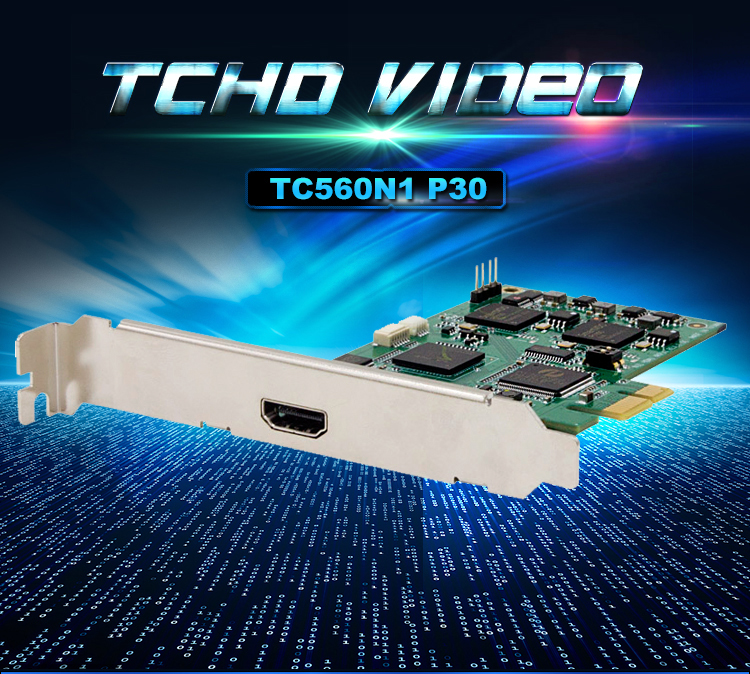

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

TC560N1 P30 with 1xHDMI input, support from 4K30P to 720x576i50 full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. Can connect another PC display card to record directly.

 Model

 TC56ON1P30 HDMI

 Max.FPS

 4096x2160p30/25fps in

 4096x2160p@30/25fps out

 Recording Mode

 Software Compression,Real-Time Mode

 Dimension

 164.49x96.51(mm)

 Interface

 PClx4(Gen2)

 video Input

 1xHDMl 1.4B

 Display Video Format

 WV12,NV12,YUY2,RGB24,RGB32

 video RAW Data Resolution

 HDMI 1.4B

 4096x2160@30/25/24fps

 3840X2160@30/25/24FPS

 2560x1600@60fos

 2048x1152@60fps

 2560x1440p@60fps

 1920x1440p@75/60/50fps

 1920x1200p@85/75/60/50fps

 1920X1080P@60/50fps

 1920x1080p@30/25/24fps

 1920x1080i@60/50fps

 1280x720p@60/5Ofps

 1280x1024p@60fps

 1280x960p@60fps

 1024X768p@60fps

 800x600p@60fps

 640x480p@60fps

 720x480p@60fps

 720x576p@50fps

 720x480i@60fps

 720x576i@50fps

 Recording Video Format

 H.264 (Software Compression)

 Recording Video Resolution

 HDMI 1.4B

 4096x2160@30/25/24fps

 3840x2160@30/25/24fps

 2560x1600@60fps

 2048x1152@60fps

 2560x1440p@60fps

 1920x1440p@75/60/50fp

 1920x1200p@85/75/60/50fps

 1920x1080p@60/5Ofps

 1920X1080P@30/25/24FPS

 1920x1080i@60/50fps

 1280x720p@60/5Ofps

 1280x1024p@60fps

 1280x960p@60fps

 1024x768p@6Ofps

 800x600p@60fps

 640x480p@60fps

 720x480p@60fps

 720x576p@50fps

 720x480i@60fps

 720x576i@50fps

 Audio Input

 1xHDMI Embedded audio

 Audio Format

 Stereo/ 16-bit /32000-48000Hz

 WatchDog

 Yes

 Multiple Cards

 ∞

 SDK

 VC++ /C# /.NET/ VB /V4L2

 System Requi rement

 OS Support

 Windows XP/ Vista /Windows 7

 Windows 8 /Windows 8. 1/ Windcws 10

 Linux 2.6.14 or Higher

 (32-bit and 64-bit )



4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Main Features

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Software Support

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Applications

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

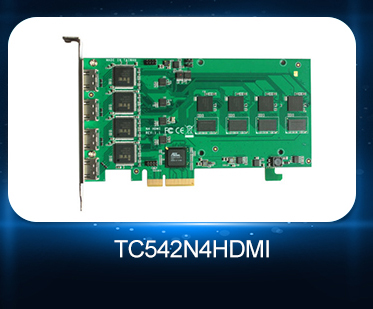

Related Products

4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Packaging & Shipping

4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Advantages

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression

Company Information

 4K UHD Live Streaming Game Capture PCI TV Capture Card With Software Compression
