3G-SDI To VGA Converter Video To IP Converter With Splitter 7.5V-15V

Name: 3GSDI To VGA Converter Video To IP Converter With Splitter 75V15V
Brand: TCHD
Price: 190.00 USD

Buy cheap 3G-SDI To VGA Converter Video To IP Converter With Splitter 7.5V-15V product

Brand Name : TCHD

Model Number : SDI2VGA

Place of Origin : Beijing, China

Packaging Details : Carton box

Supply Ability : 300 Piece/Pieces per Month

Price : $190.00 - $210.00/pieces

Input : SDI

Output : VGA

Feature : Plug and Play, up/down scaling

Application : video format conversion, video display, TV wall, image display

DC In : 7.5V-15V

Port : Beijing

Contact Now

Factory price 3G-SDI to VGA converter video to ip converter with splitter up/down scaling

Introduction

3G-SDI To VGA Converter Video To IP Converter With Splitter 7.5V-15V

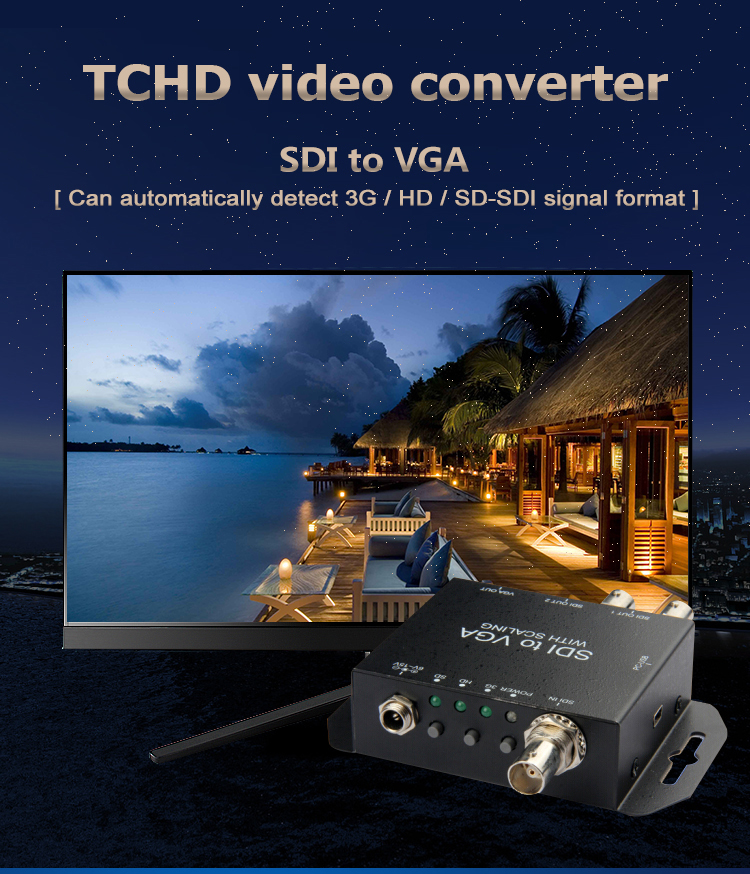

TCHD SDI to VGA video converter is a high-quality, high-performance video signal conversion product. It Supports 1 channel SDI input and 2 channels SDI output+1channel VGA output.Unlike the traditional converter products in current market, ourSDI to VGA Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, compatible with all common 3G / HD / SD-SDI signals.

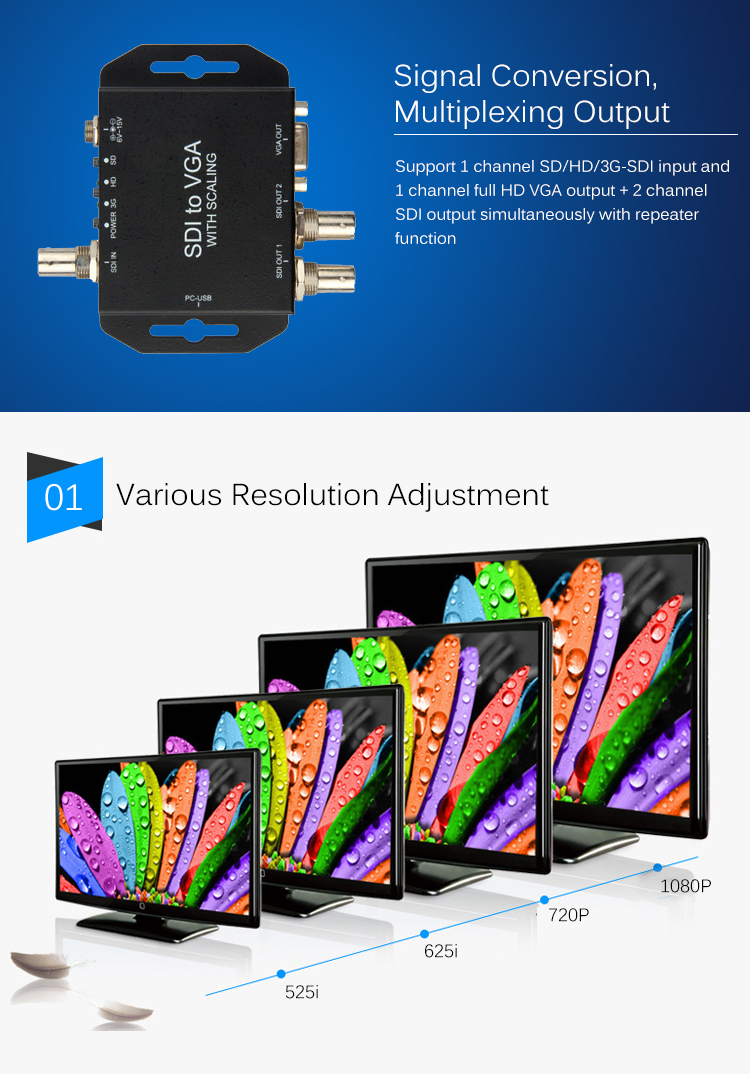

Description	Converts From SDI to VGA Provides Two Additional SDI Outputs with Repeater Function.
Feature	Auto Source Format Detection (3G/HD/SD) Built-In Hardware Scaling Engine with Anti-Aliasing Simultaneous 1xVGA and 2xSDI Output Splitter Function Re-clock Function (for SDI Output) 1Mini-USB Port Used for: Brightness,Contrast,Hue,Saturation,Configuration Firmware Upgrade
Input Interface	SDIX1
Output Interface	D-Subx1 SDIX2
SDI Format	3G-SDI HD-SDI SD-SDI
Supported Video Format	640X480@60HZ 800X600@60HZ 1024X768@60HZ 1280X720@60HZ 1280X1024@60HZ 1400X1050@60HZ 1600X1200@60HZ 1920X1080@60HZ



Supported Audio Format	Up to 8 channels,24bit,48KHz (Only Available with SDI Loop-Through Output)
Supported Audio Format
Plug & Play	YES
DC In	7.5V-15V

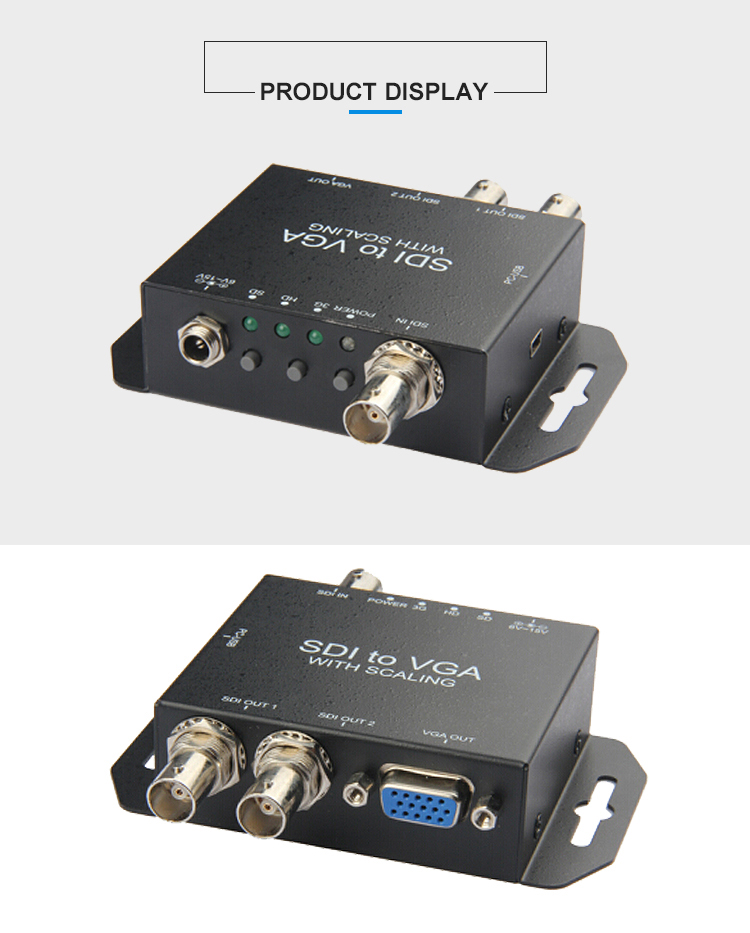

Product Display

3G-SDI To VGA Converter Video To IP Converter With Splitter 7.5V-15V

3G-SDI To VGA Converter Video To IP Converter With Splitter 7.5V-15V Images
